Touch Screen Control Disposable Mask Machine For Colored Medical
Face Masks
Disposable Mask Machine Description :

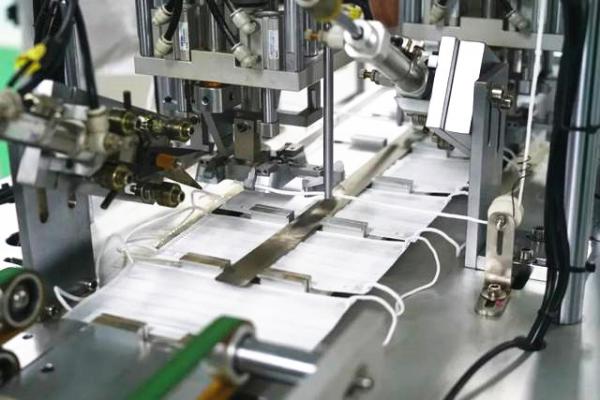

The Mask Making Equipment is used to fully automated make flat
masks with with size 175*95mm. The main production process flow is
coil material feeding, nose bridge tendon feeding, folding and
pressing, mask cutting and forming, ear band feeding and welding,
and finished product unloading. Automatically completes production
from raw materials to finished masks. The produced masks are
comfortable to wear, no pressure, good filtering effect of the
masks, fit the human face, and can be used in medical, electronics,
mining, construction and other industries.
Disposable Mask Machine Main Features:
- Computer program control, high output, good stability and low
failure rate.
- photoelectric detection of raw materials to avoid errors and reduce
waste.
- It can produce one to four layers of mask body.
- The machine has the function of total count and batch count. The
number of batch count can be set arbitrarily..
Disposable Mask Machine parameters :
| Control system power | 1 Phase 220V / 50HZ |
| Air Pressure | 0.6Mpa |
| Power supply | 3Phase 380V 50HZ |
| servo motor | Domestic quality |
| Control System | PLC |
| sensor | Omron, Seak |
| Pneumatic Components | SMC Yadek |
| Operation screen | 10 inch capacitive screen |
| Bearing | NSK |
| Lead screw | Hiwin |
| Security | Safety light grid |
| Equipment structure | 2 ply |
| equipment power | 8.5KW |
| equipment weight | about2.6T |
| Driven | Ordinary motor + servo |
| Number of applicable layers | 3-layer |
| Applicable materials | PP, non-woven fabric, synthetic fiber |
| Processing methods | Ultrasonic welding |
| Finished product specifications | 175*95mm |
| Technical characteristics | |
1. Three layers of fabric are automatically aligned and feed, and
weilding sys use ultrasonic waves are continuously pressed.
2. The production line adopts the structure of 2ply, with high
production efficiency
3. Nose clips and ear loop are automatically cut and welded by
ultrasound
4. Automatic counting and palletizing after welding earbands |
Our Advantages
1. Certified company with CE certificates.
2. Various production line, covering more than 50 different kinds
of professional machinery to produce ultrasonic related machine.
3. Advanced technical support and strict quality management
system..High-efficiency and timely service by E-mail, Skype,
WhatsApp, etc. and 24-hours telephone service.
4. Having many experience in this field, our machine are in great
demand at home and abroad. We have exported the machine more than
50 countries.
