Safe Operation Surgical Face Mask Making Machine Photoelectric Detection 220V / 50Hz

    Buy cheap Safe Operation Surgical Face Mask Making Machine Photoelectric Detection 220V / 50Hz from wholesalers

    Buy cheap Safe Operation Surgical Face Mask Making Machine Photoelectric Detection 220V / 50Hz from wholesalers
    • Buy cheap Safe Operation Surgical Face Mask Making Machine Photoelectric Detection 220V / 50Hz from wholesalers
    • Buy cheap Safe Operation Surgical Face Mask Making Machine Photoelectric Detection 220V / 50Hz from wholesalers

    Safe Operation Surgical Face Mask Making Machine Photoelectric Detection 220V / 50Hz

    Ask Lasest Price
    Model Number :
    Certification : CE / FDA
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25 sets per month
    Delivery Time : 3 work days
    Brand Name : OEM
    • Product Details
    • Company Profile

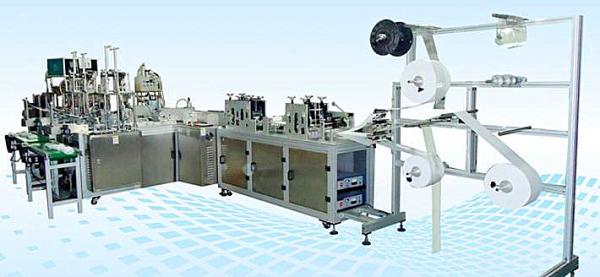

    Safe Operation Surgical Face Mask Making Machine Photoelectric Detection 220V / 50Hz

    Safe Operation Face Mask Manufacturing Machine Photoelectric Detection

    Face Mask Manufacturing Machine Description :


    We know that the medical mask is composed of the mask body and ear band, the traditional medical mask machine is made of a machine that produces the mask body, which is then welded by the inner/outer ear loop welding machine. In order to realize the perfect cooperation between the machine and the automatic weld ear loop, also achieve maximum efficiency of the production line, we need to link one mask blank machine and one ear loop welding machine work together.


    Face Mask Manufacturing Machine Features:


    1. photoelectric detection of raw materials to avoid errors and reduce waste.
    2. It can produce one to four layers of mask body.
    3. The machine has the function of total count and batch count. The number of batch count can be set arbitrarily.
    4. Replacing the mold can produce masks of different sizes and styles.
    5. the whole machine adopts aluminum alloy structure, beautiful and sturdy.

    Face Mask Manufacturing Machine parameters :


    Control system power1 Phase 220V / 50HZ
    Air Pressure0.6Mpa
    Power supply3Phase 380V 50HZ
    servo motorDomestic quality
    Control SystemPLC
    sensorOmron, Seak
    Pneumatic ComponentsSMC Yadek
    Operation screen10 inch capacitive screen
    BearingNSK
    Lead screwHiwin
    SecuritySafety light grid
    Equipment structure2 ply
    equipment power8.5KW
    equipment weightabout2.6T
    DrivenOrdinary motor + servo
    Number of applicable layers3-layer
    Applicable materialsPP, non-woven fabric, synthetic fiber
    Processing methodsUltrasonic welding
    Finished product specifications175*95mm
    Technical characteristics

    1. Three layers of fabric are automatically aligned and feed, and weilding sys use ultrasonic waves are continuously pressed.
    2. The production line adopts the structure of 2ply, with high production efficiency
    3. Nose clips and ear loop are automatically cut and welded by ultrasound
    4. Automatic counting and palletizing after welding earbands


    Price Term


    1. Above price is quoted based on FOB Shenzhen China
    2. Payment term: 30% down payment, the balance paid before delivery
    3. Delivery time: Within 25 workdays after received 50% down payment
    4. COUNTRY OF ORIGIN: China
    5. MARKING: Notice by buyer
    6. PACKING: Wooden Pallet


    Disposable Face Mask Machine Details
