High Efficiency Mask Making Machine For Mask , Mouth Cover
Production
Mask Making Machine Basic Info. :
Machine Type:Mask Making Machine
Power Input:220V / 50Hz
Product Size :175*95mm
Warranty :12 Months
Service : English Video Call Installation Training
Product Type : Mask, Mouth Cover
Usage : Hospital, Public
Weight :2300kg
Purpose: Making Disposable Face Mask
Driven Type : Electric
Air Pressure : 0.6MPa
Transport Package : Sea Worthy Wooden Cases
Machine size of the connected part: 6500 (L) × 3500 (W) × 1800 (H)
MM
6500 (L) × 3500 (W) × 1800 (H) MM
Output: 120 pieces / minute
Power consumption: 8.5KW
Mask Making Machine Main Features:
1. Counting Automatically can control the speed and efficiency of
the machine.
2. Frequency conversion control , the machine can adjust the speed
according to the working condition
3. Automatic Machine, easy operate by the workers, only need put
material and collect.
4. Easy to maintain the machine.
Mask Making Machine parameters :
| Control system power | 1 Phase 220V / 50HZ |
| Air Pressure | 0.6Mpa |
| Power supply | 3Phase 380V 50HZ |
| servo motor | Domestic quality |
| Control System | PLC |
| sensor | Omron, Seak |
| Pneumatic Components | SMC Yadek |
| Operation screen | 10 inch capacitive screen |
| Bearing | NSK |
| Lead screw | Hiwin |
| Security | Safety light grid |
| Equipment structure | 2 ply |
| equipment power | 8.5KW |
| equipment weight | about2.6T |
| Driven | Ordinary motor + servo |
| Number of applicable layers | 3-layer |
| Applicable materials | PP, non-woven fabric, synthetic fiber |
| Processing methods | Ultrasonic welding |
| Finished product specifications | 175*95mm |
| Technical characteristics | |
1. Three layers of fabric are automatically aligned and feed, and
weilding sys use ultrasonic waves are continuously pressed.
2. The production line adopts the structure of 2ply, with high
production efficiency
3. Nose clips and ear loop are automatically cut and welded by
ultrasound
4. Automatic counting and palletizing after welding earbands |
Mask Making Machine Advantages :
- All electrical components of the equipment adopt international
first-line brands to ensure the stability of the equipment to the
greatest extent;
- Modular design, convenient installation and maintenance;
- Intelligent control, simple and convenient operation;
- Automatic shutdown alarm for equipment abnormality, early warning
of lack of materials, and intelligent guidance of human-machine
interface for quick processing;
- Appearance is made of food-grade stainless steel.
Price Term
1. Above price is quoted based on FOB Shenzhen China
2. Payment term: 30% down payment, the balance paid before delivery
3. Delivery time: Within 25 workdays after received 50% down
payment
4. COUNTRY OF ORIGIN: China
5. MARKING: Notice by buyer
6. PACKING: Wooden Pallet

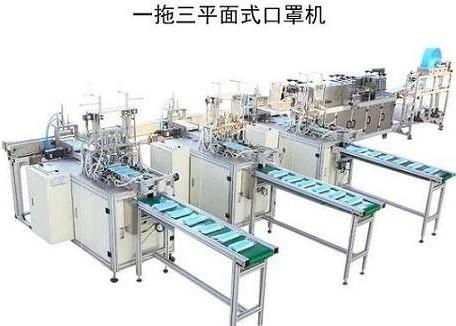

Mask Making Machine Details
